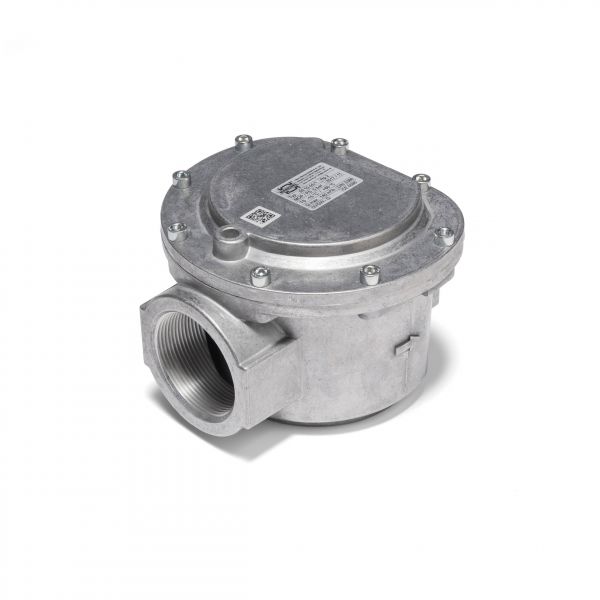

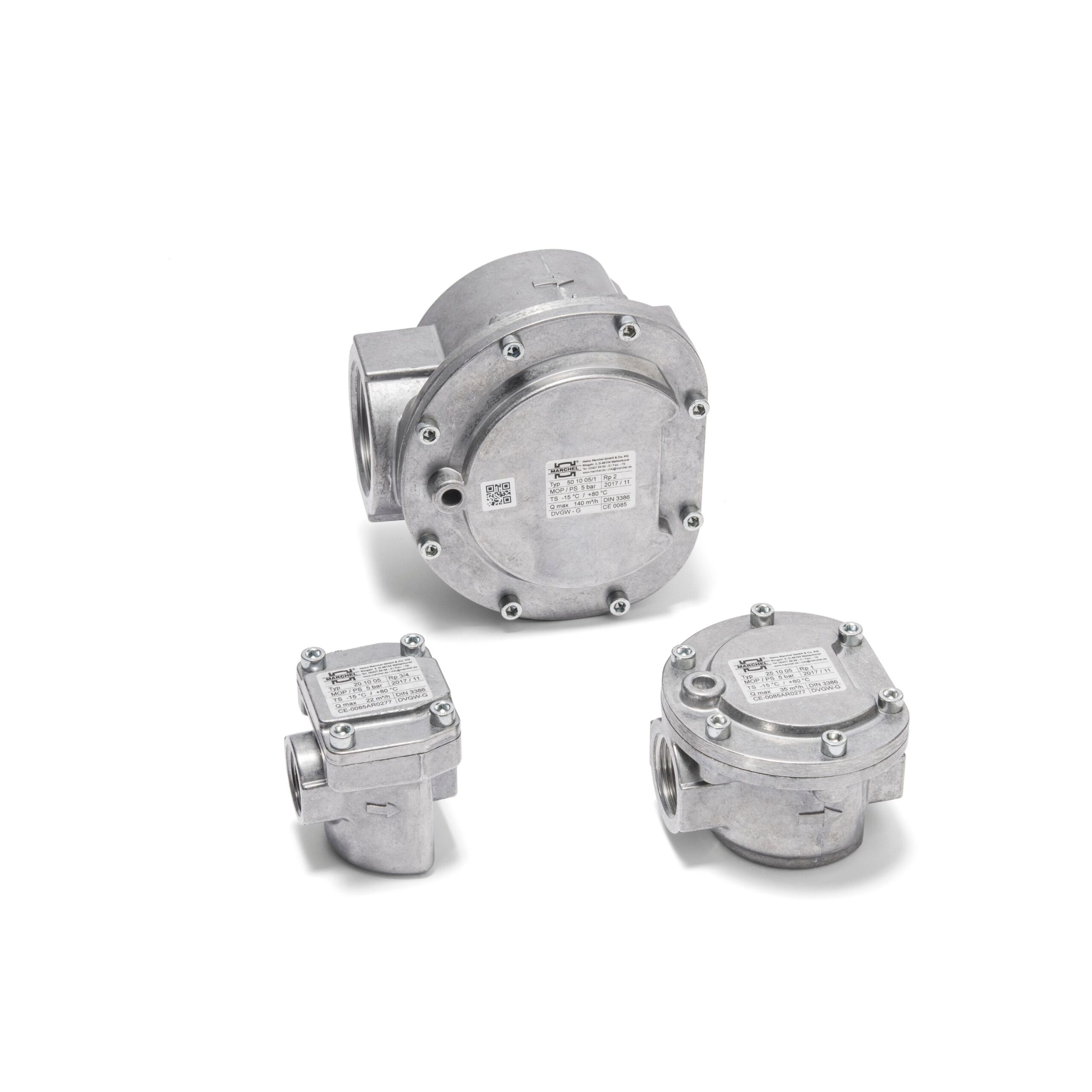

Thread-Gasfilter PS 1 - PS 5

for separation of dirt and dust particles from gas accordance
with DVGW code of practice G 260, air and hydrogen.

PS 1 = PS max. 1 bar, TS -20°C to +80°C, grade of filtration appr. 50 μm
PS 5 = PS max. 5 bar, TS -20°C to +80°C, grade of filtration appr. 50 μm

Gas filter with grade of filtration appr. 10 μm with additional costs.

Certifications:
– Pressure Equipment Directive 2014/68/EU ( > Rp 1)
– Gas Appliances Regulation (EU) 2016/426

Additional tests:
– tested for 100 % hydrogen, H2ready

Downloads:

Technical specifications:

Connection/Thread	Pressure	max. m³/h operating situation	Installation length	Weight	Type	Art.-No.	Stock
Rp ½	1 bar	12 m³/h	62 mm	0,30 kg	15 10 01	1202015	true
Rp ¾	1 bar	22 m³/h	62 mm	0,28 kg	20 10 01	1208020	true
Rp 1	1 bar	35 m³/h	93 mm	0,50 kg	25 10 01	1214025	true
Rp 1¼	1 bar	57 m³/h	122 mm	0,92 kg	32 10 01/1	1260032	true
Rp 1½	1 bar	90 m³/h	122 mm	0,87 kg	40 10 01/1	1263040	true
Rp 2	1 bar	140 m³/h	148 mm	1,30 kg	50 10 01/1	1266050	true

Rp ½	5 bar	12 m³/h	62 mm	0,30 kg	15 10 05	1399015	true
Rp ¾	5 bar	22 m³/h	62 mm	0,28 kg	20 10 05	1340020	true
Rp 1	5 bar	35 m³/h	93 mm	0,50 kg	25 10 05	1341025	true
Rp 1¼	5 bar	57 m³/h	122 mm	0,92 kg	32 10 05/1	1342032	true
Rp 1½	5 bar	90 m³/h	122 mm	0,87 kg	40 10 05/1	1343040	true
Rp 2	5 bar	140 m³/h	148 mm	1,30 kg	50 10 05/1	1401050	true
