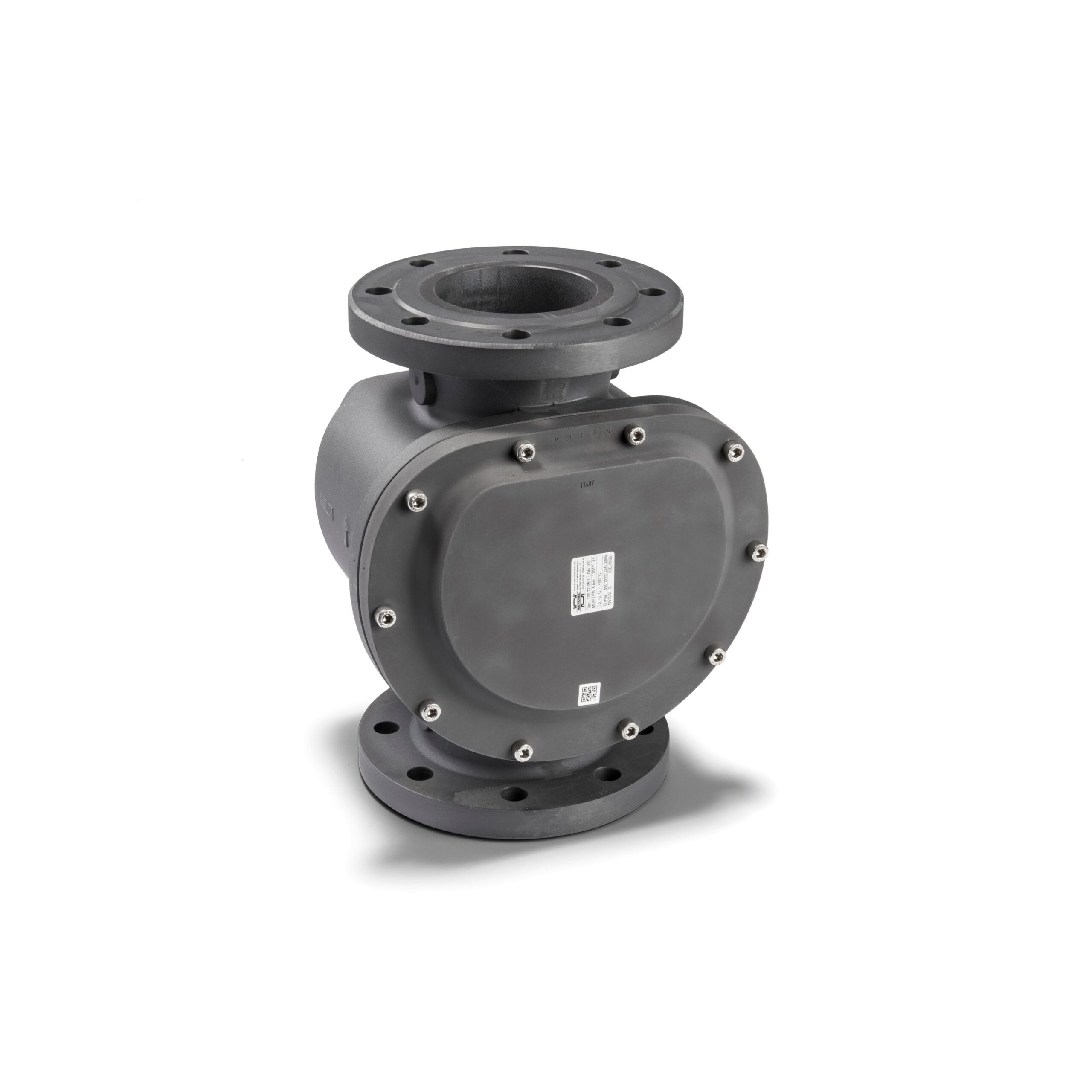

Flange gas Filter PS 5 with HTB certificate (angle version)

for separation of dirt and dust particles from gas accordance with DVGW code of practice G 260 and air

PS 5 = PS max. 5 bar, TS –10°C to +80°C, grade of filtration appr. 50 μm

HTB PS max.5 bar (HTB-tested 650° C – 30 minutes)

Drillings with plug, each 1x in the entrance and exit,
DN 25 – DN 50: G 1/4 right side, DN 80 – DN 150: G 1/2 right side

Certifications:
– Pressure Equipment Directive 2014/68/EU ( > DN25)
– Gas Appliances Regulation (EU) 2016/426
– DVGW-G (DIN 3386)

Downloads:

Technical specifications:

Connection/Flange	Pressure	max. m³/h operating situation	Installation length	Weight	Typ	Art.-No.	Stock
DN 25	5 bar	35 m³/h	78 mm	4,80 kg	25 35 05	3062025	true
DN 50	5 bar	140 m³/h	123 mm	13,10 kg	50 35 05	3063050	true
DN 80	5 bar	350 m³/h	134 mm	27,40 kg	80 35 05	3064080	true
DN 100	5 bar	550 m³/h	159 mm	42,60 kg	100 35 05	3065100	true
DN 150	5 bar	1260 m³/h	210 mm	78,80 kg	150 35 05	3066150	true
