Pressure gauges with bourdon tube

class 1.0, without zero adjustment, EN837-1

for pressure indicating according for gas accordance with DVGW code of practice G 260 and air

housing stainless steel Ø 100 mm,
measuring element copper/brass (CuBe)
connection R 1/2 radial,
TS -20°C to + 60°C, overload safety 1.3 times

Downloads:

Technical specifications:

Connection/Thread	Range	Weight	Type	Art.-No.	Stock
R ½	0 - 1,0 bar	0,55 kg	RF 100 - 1,0	8070015	true
R ½	0 - 1,6 bar	0,55 kg	RF 100 - 1,6	8071015	true
R ½	0 - 2,5 bar	0,55 kg	RF 100 - 2,5	8072015	true
R ½	0 - 4,0 bar	0,55 kg	RF 100 - 4,0	8073015	true
R ½	0 - 6,0 bar	0,55 kg	RF 100 - 6,0	8074015	true
R ½	0 - 10,0 bar	0,55 kg	RF 100 - 10,0	8075015	true
R ½	0 - 16,0 bar	0,55 kg	RF 100 - 16,0	8076015	true
R ½	0 - 25,0 bar	0,55 kg	RF 100 - 25,0	8077015	true

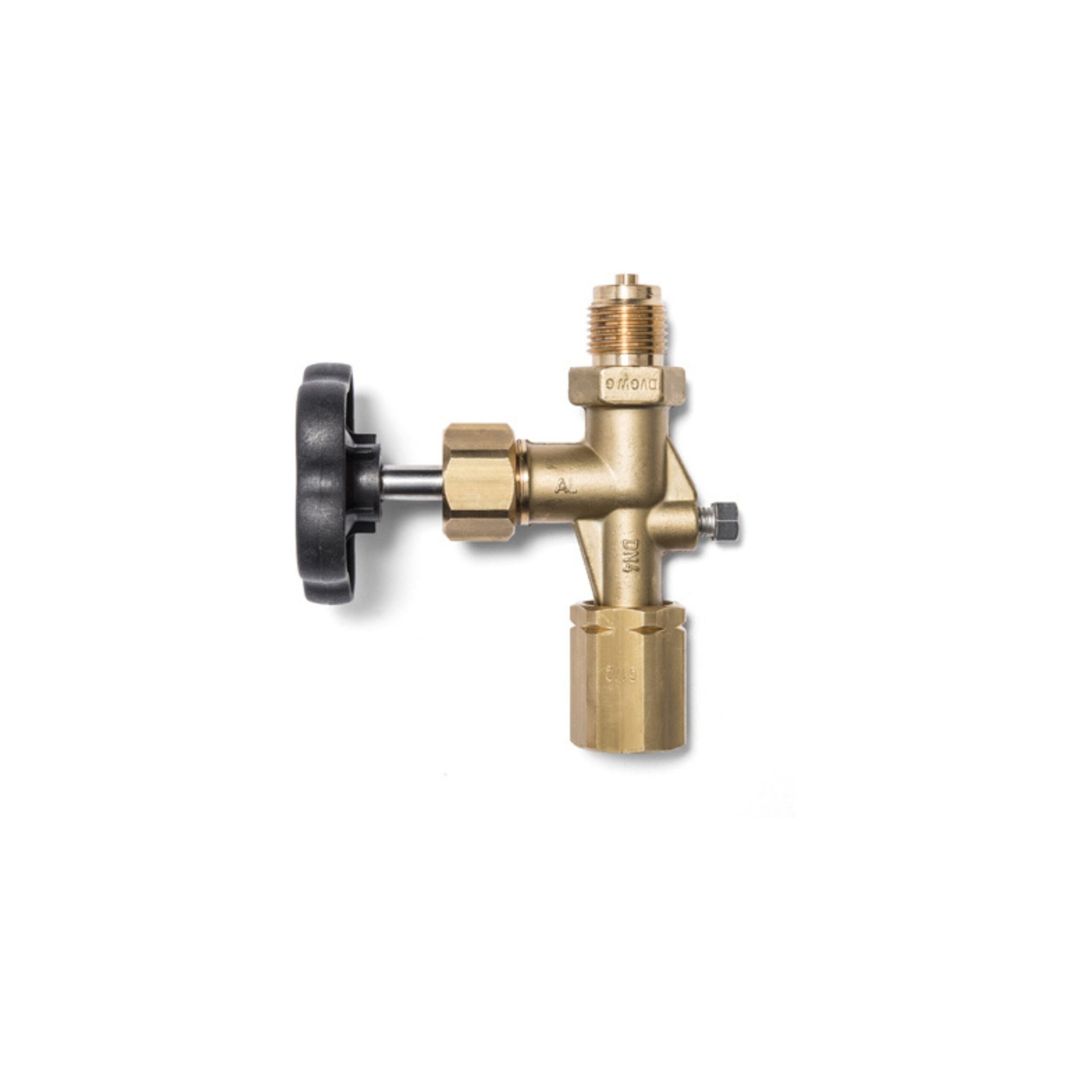

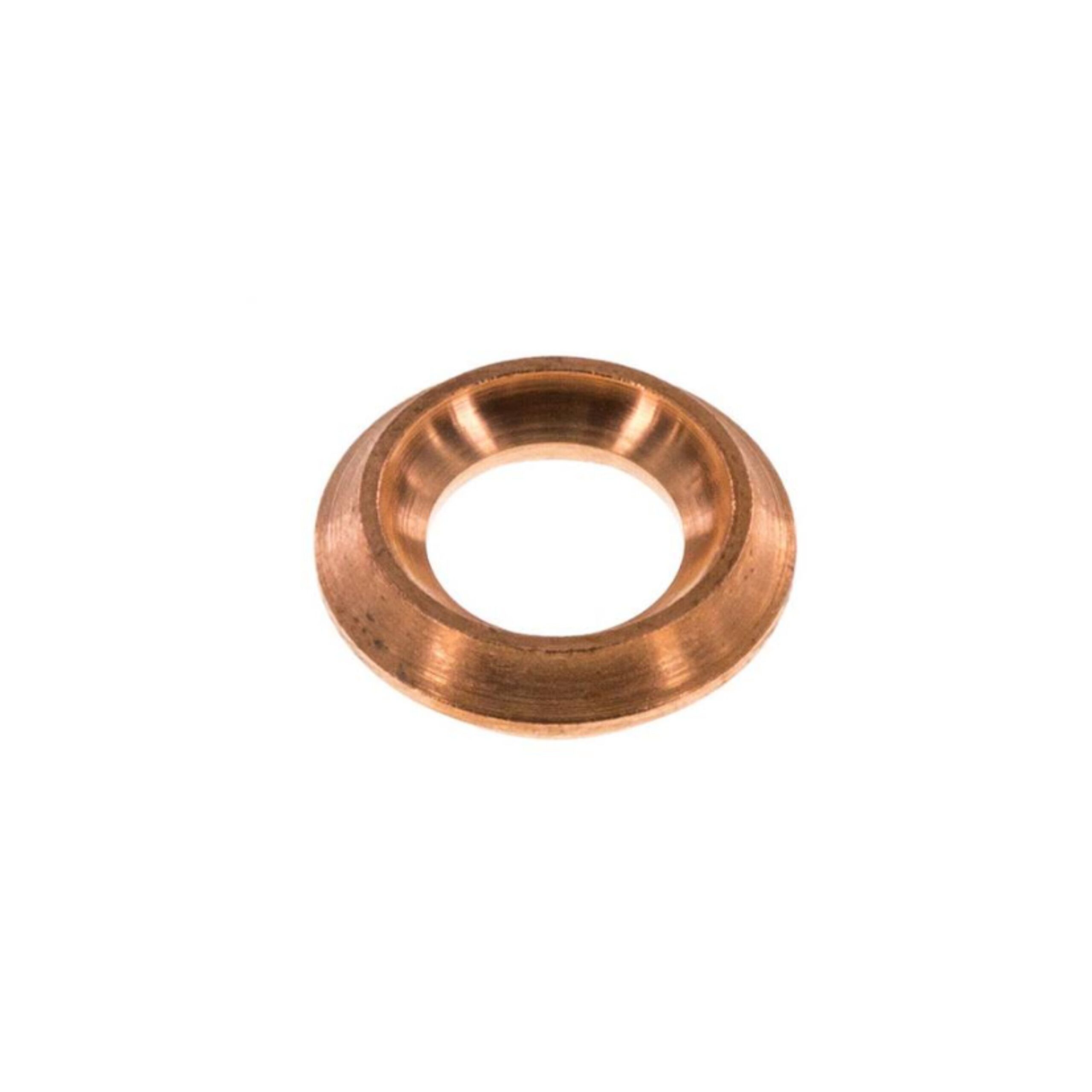

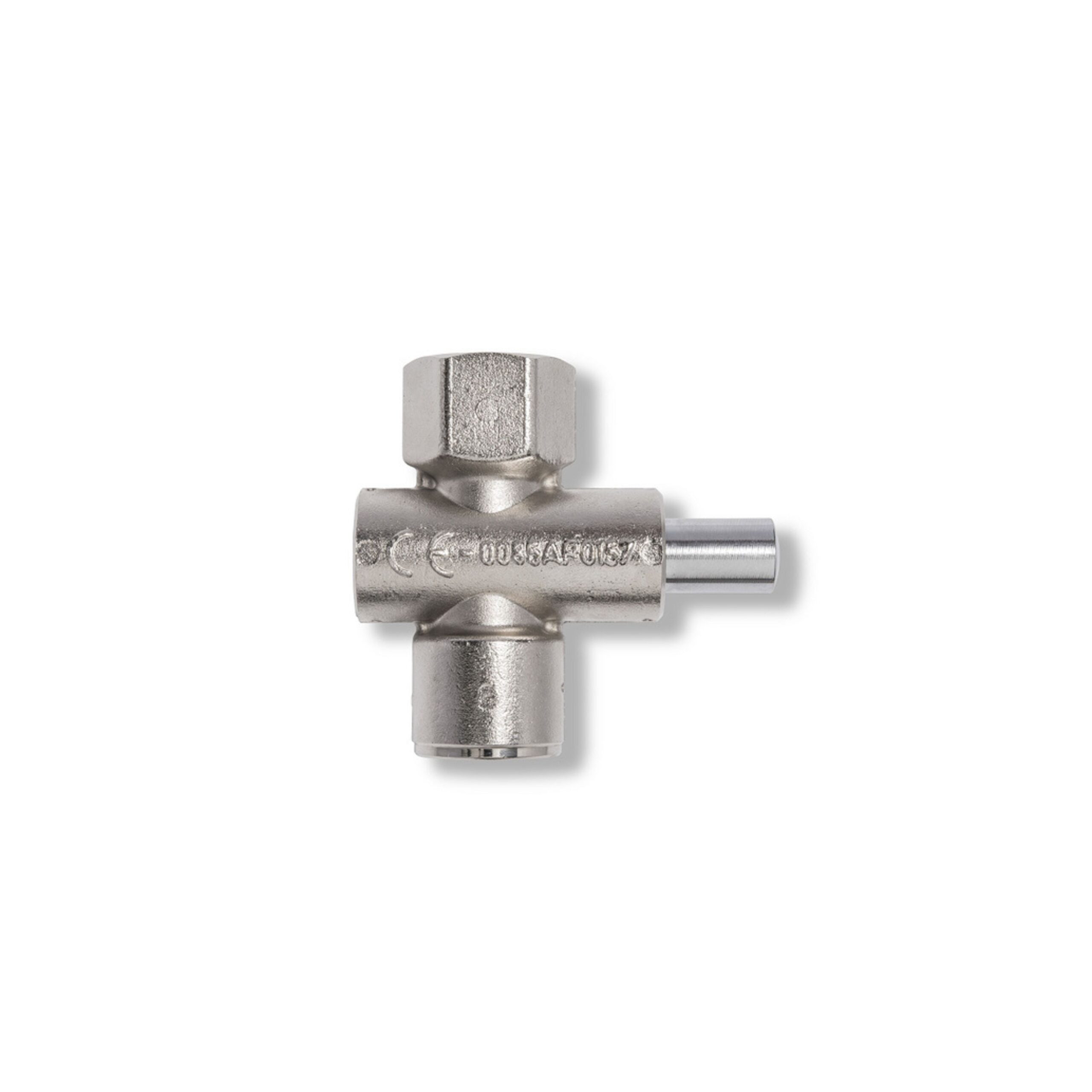

Matching replacement parts
