Sling chain and shackles for bleeding hooks

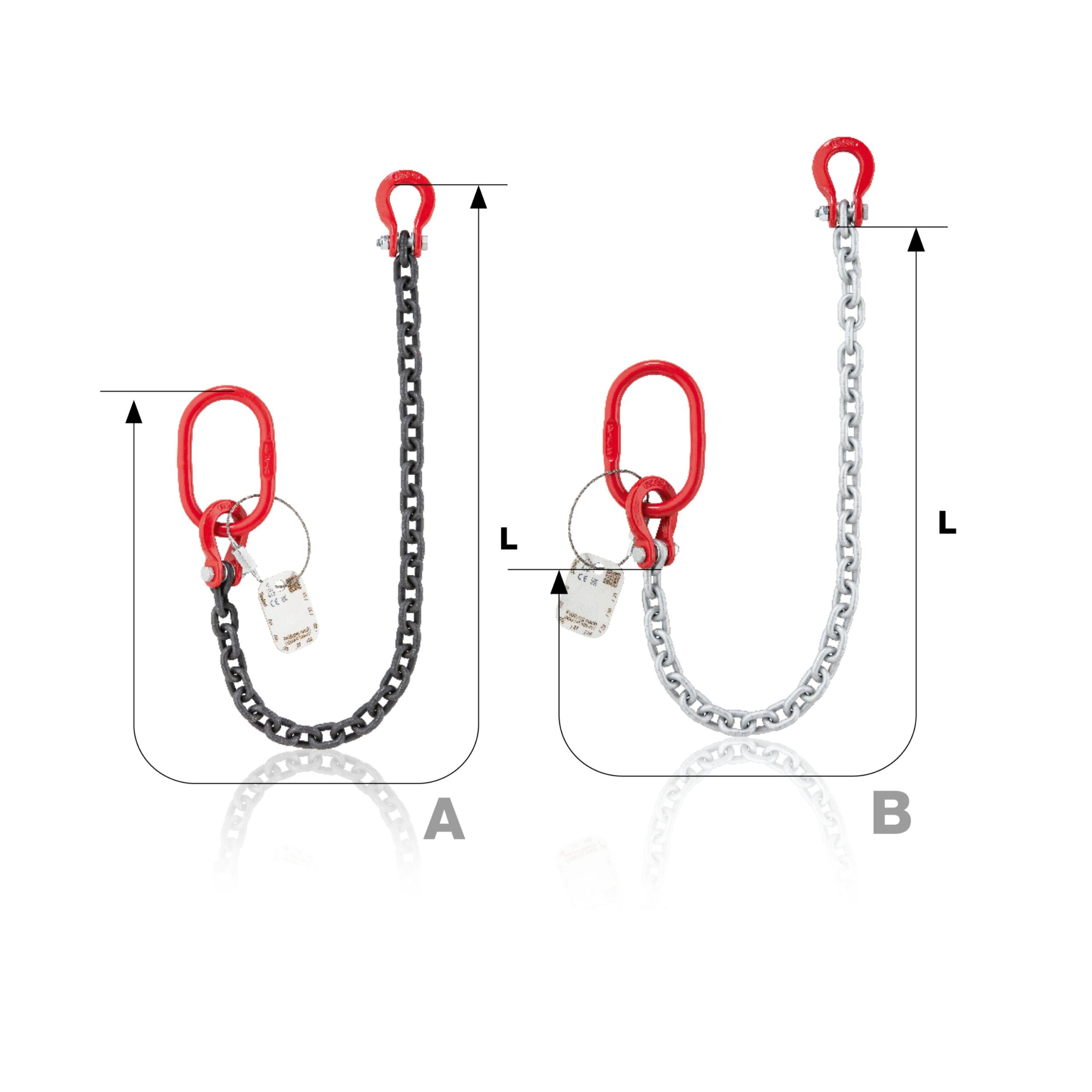

A) Sling chain GK8 burnished, Unilock U7 at the top, 110 x 60 x 13 mm at the end
B) Sling chain GK8, surfac protection with Protect Plus, top Unilock U7, 110 x 60 x 13 mm at the end

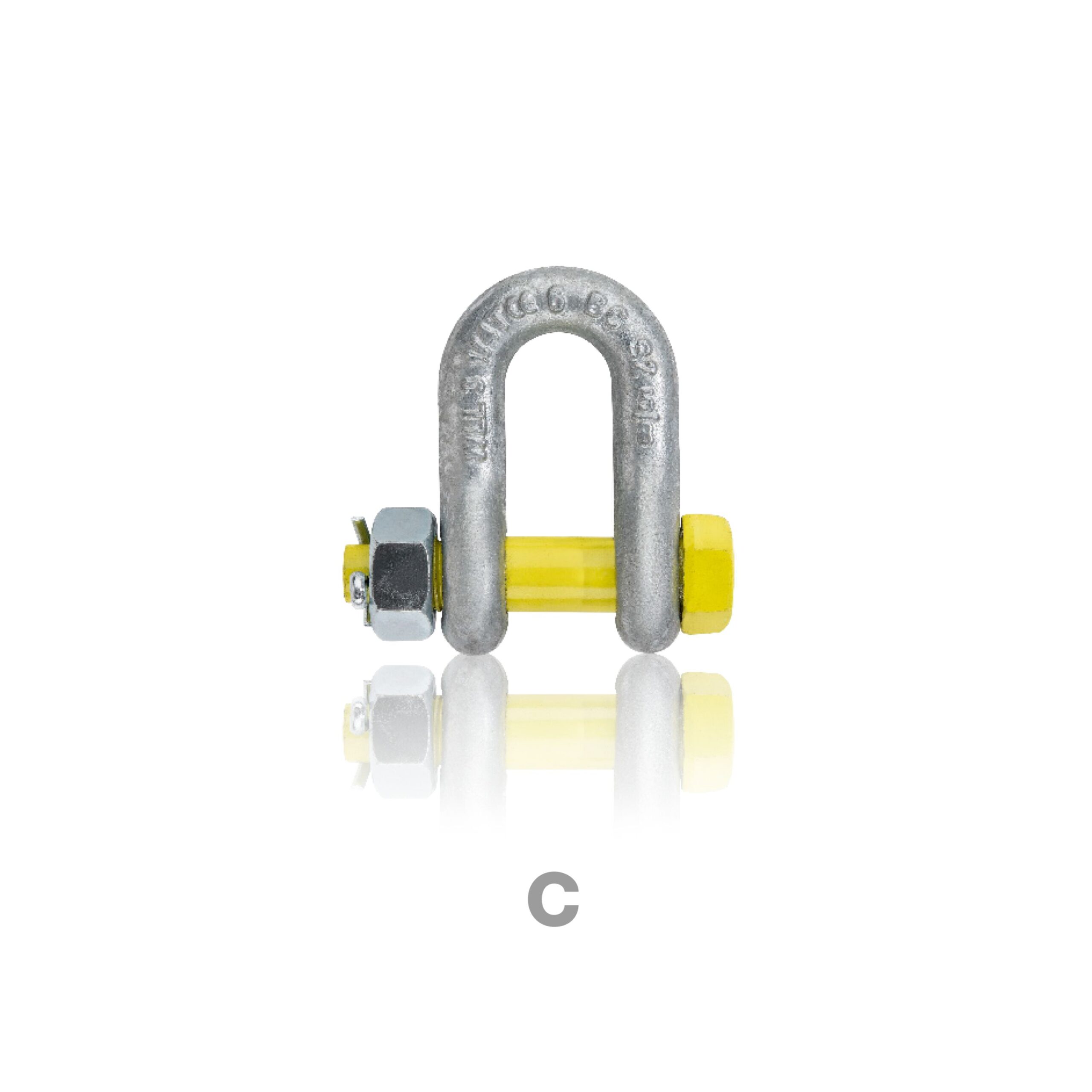

C) Shackle with bolt (hexagon head), nut and split pin, shackle opening width = 27 mm, rd. bolt = 19 mm

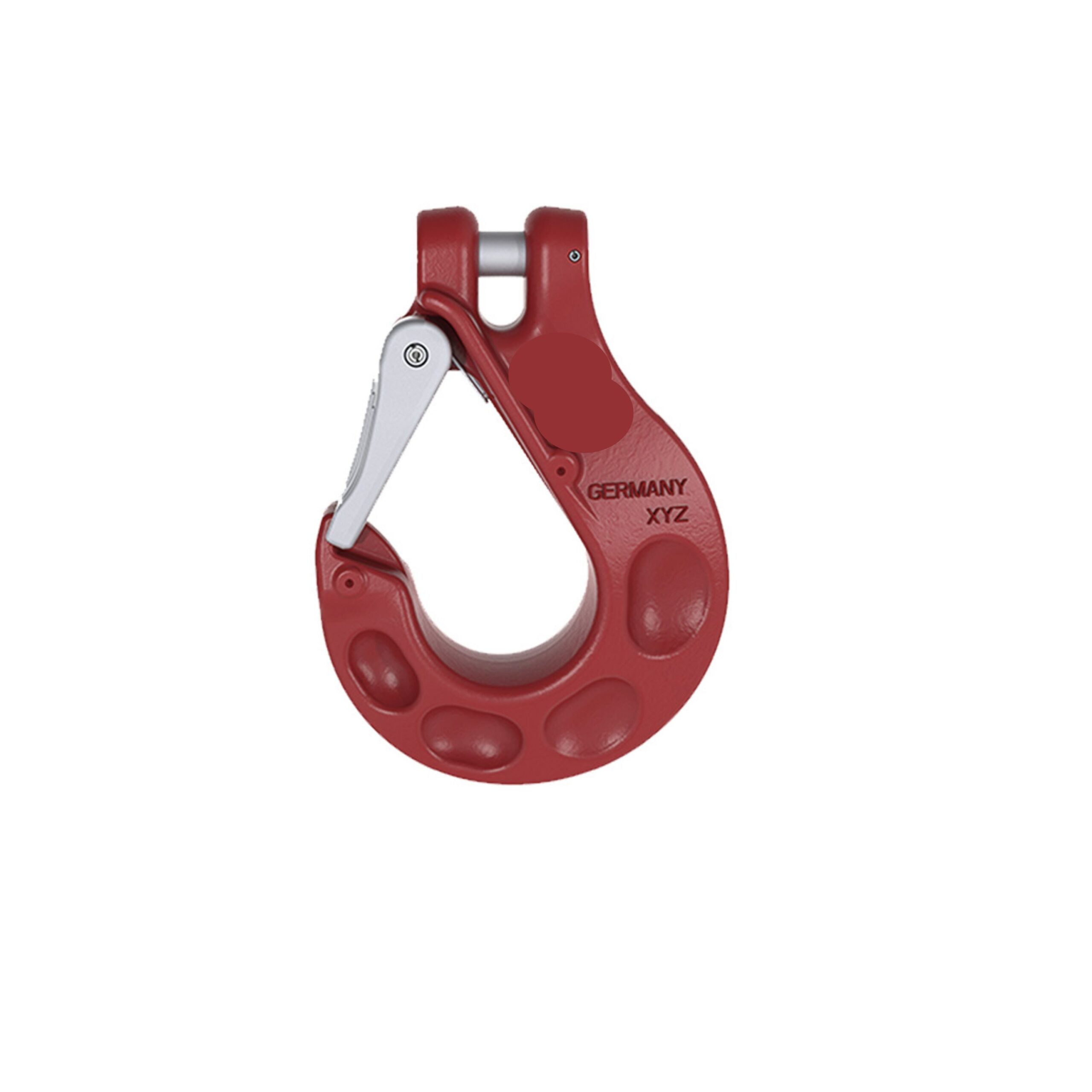

D) Slip hook with fork and safety latch, red
Technical specifications:
| Typ | Length | Load capacity | Weight | Art.-No.: |
|---|---|---|---|---|
| A | 900 mm | 1.500 kg | 6,50 kg | 92005153 |
| B | 900 mm | 1.500 kg | 6,50 kg | 92005154 |
| C | 3.250 kg | 0,7 kg | 50036010 | |
| D | 3.150 kg | 1,40 kg | 92005337 |
